Rotisserie build

Discussion in 'Garages, Workshops & Tools' started by rgfast, Apr 2, 2017.

  1. rgfast

    rgfast New Member

    24
    2
    Aug 22, 2013
    Fleming GA
    Hi everyone, I tossed around for months if I should just buy a cheap China rotisserie or build one myself. It came down to it would really easy to just hit send and in a couple of days a truck show up or go out and buy the matials to build one myself. I finally decided I should just build one and thought I'd share it here. I found what I feel is a really good set of plans searching the internet http://redwingsteelworksplans.com so here we begin.
    Day one cutting steel
    [​IMG]

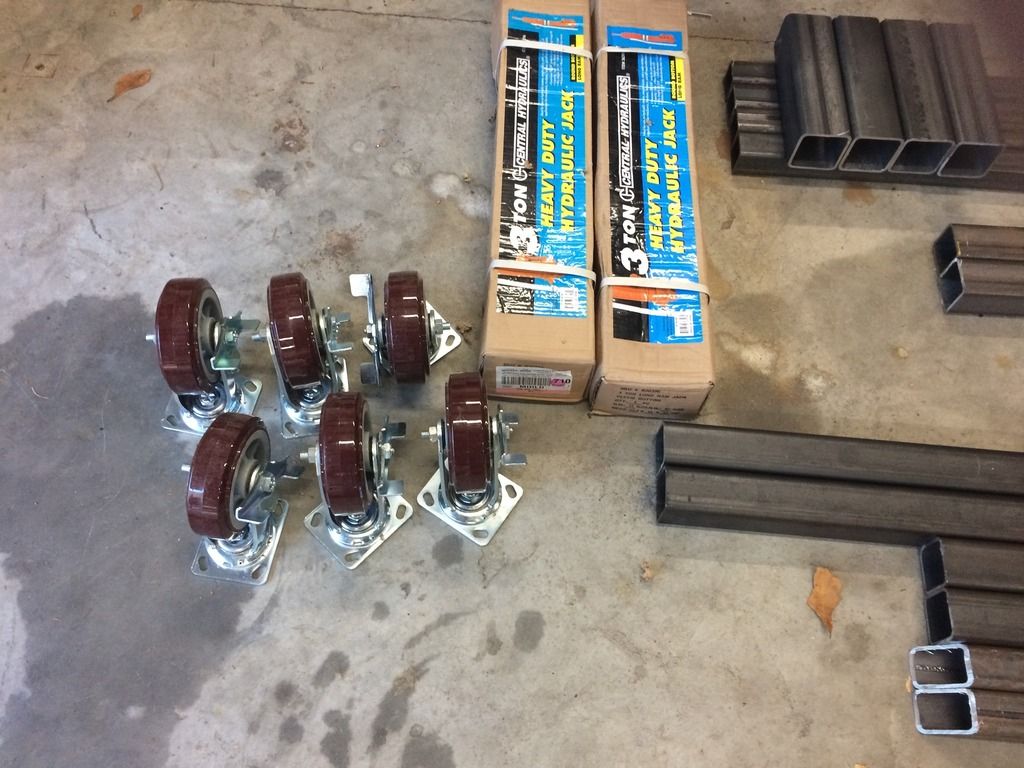

    I also picked up long arm jacks from the local Harbor Freight and caster over the internet

    [​IMG]

    so this is my start

  2. rgfast

    rgfast New Member

    24
    2
    Aug 22, 2013
    Fleming GA

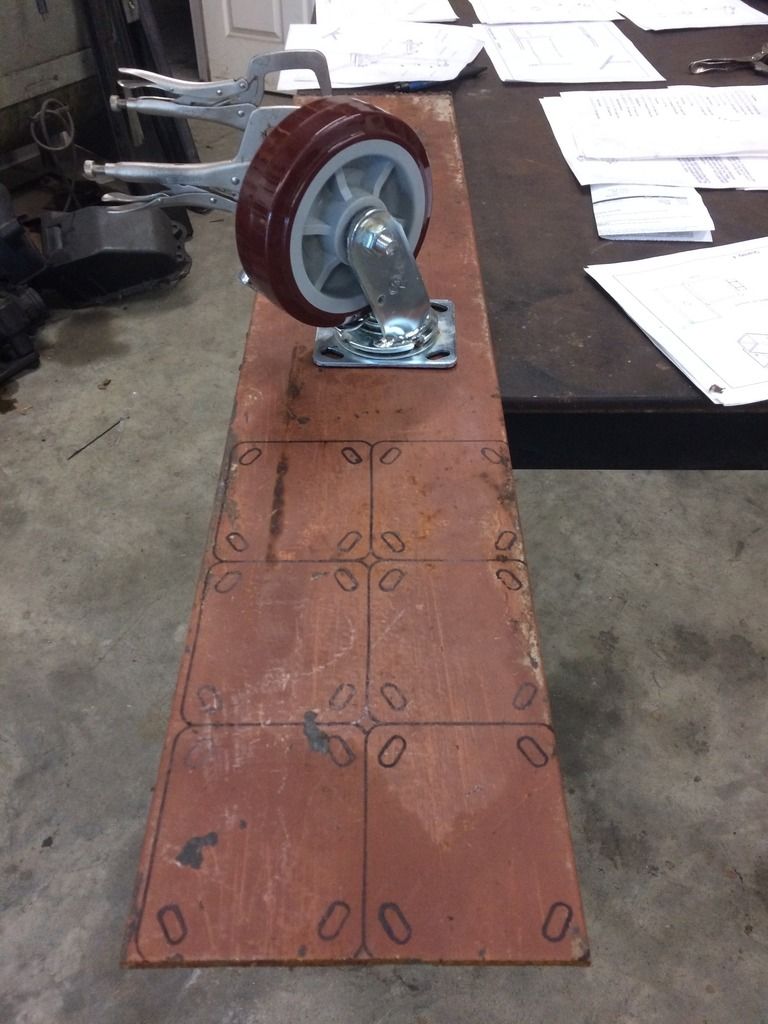

    Ok day two started out making the small parts, first I laid out caster plates to be cut with porta band

    [​IMG]

    [​IMG]

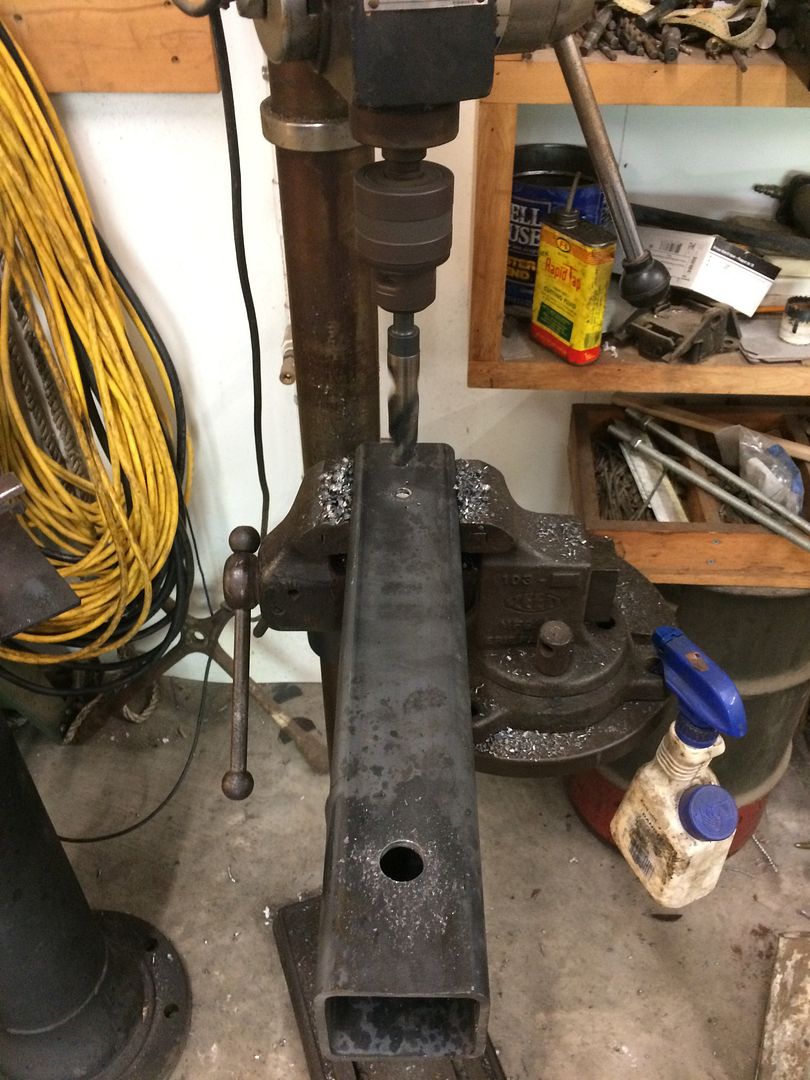

    next it was time for some drilling, drill press is my friend LOL

    [​IMG]

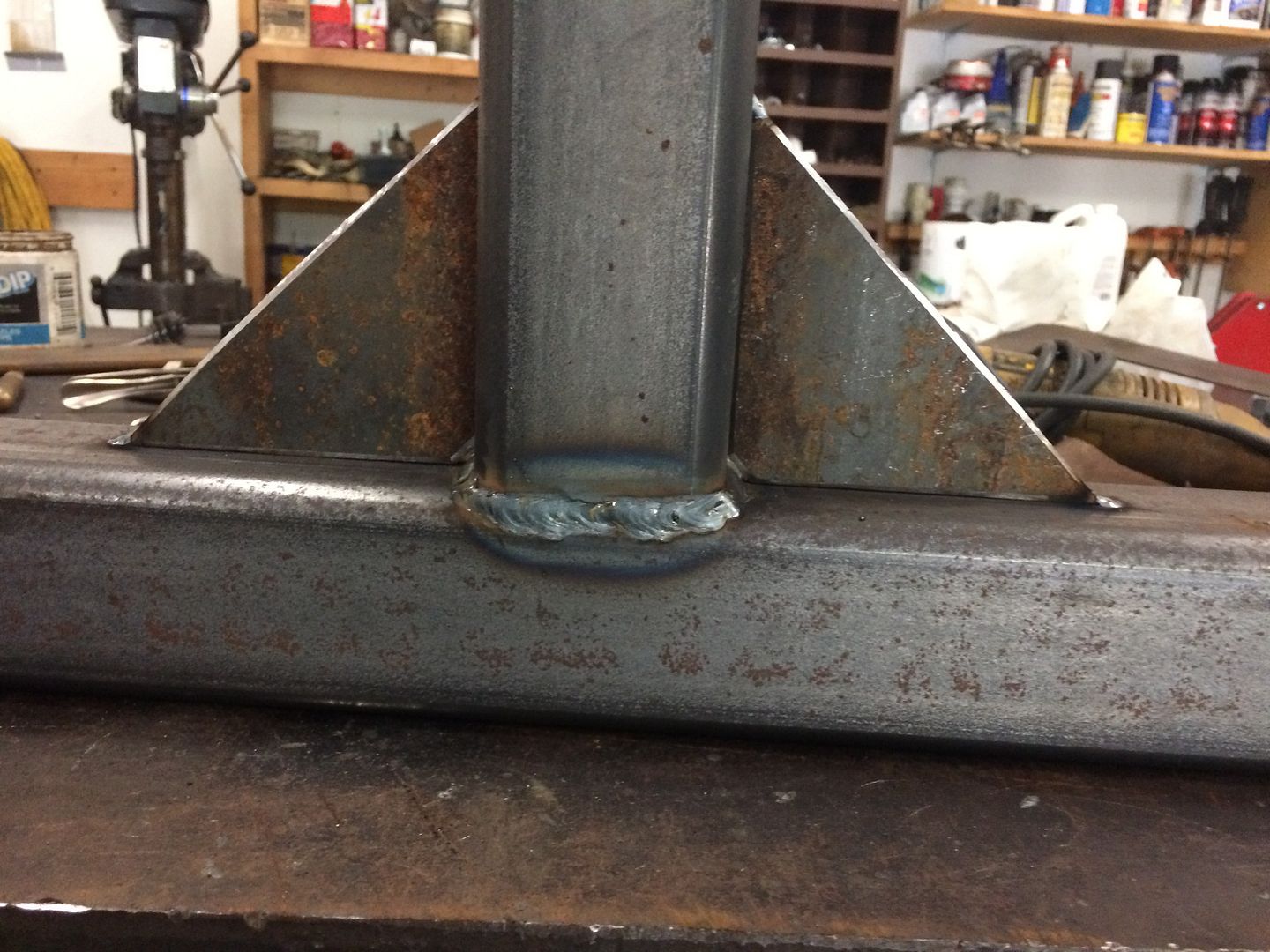

    with these made it was time to get around to some welding, I started with my end frames

    [​IMG]

    from there it was back to fabbing parts for pivot points, alot of drilling goes into building this

    [​IMG]

    [​IMG]

  3. rgfast

    rgfast New Member

    24
    2
    Aug 22, 2013
    Fleming GA
    so to end day two I had the two pivot points made and the two end frames, I must be getting old as I was wore out

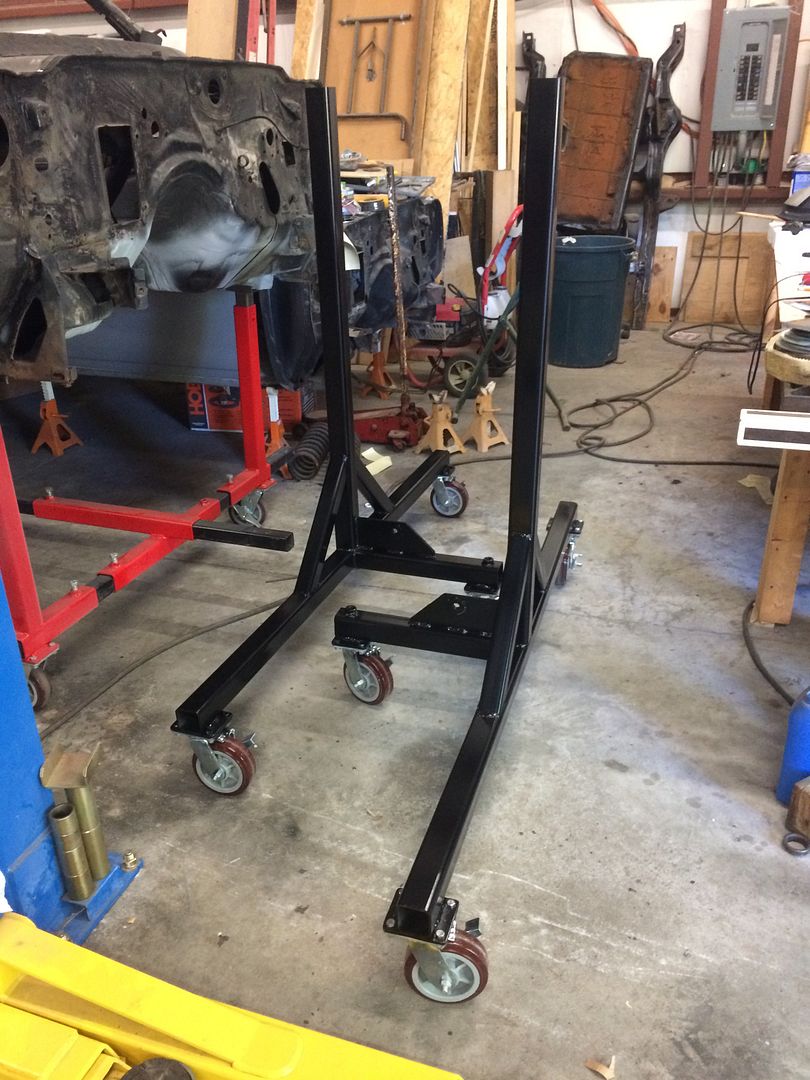

    here is a pic of two end frames completed
    [​IMG]

    more later

  4. rgfast

    rgfast New Member

    24
    2
    Aug 22, 2013
    Fleming GA
    Started today by prepping pivot point for paint

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  5. rgfast

    rgfast New Member

    24
    2
    Aug 22, 2013
    Fleming GA

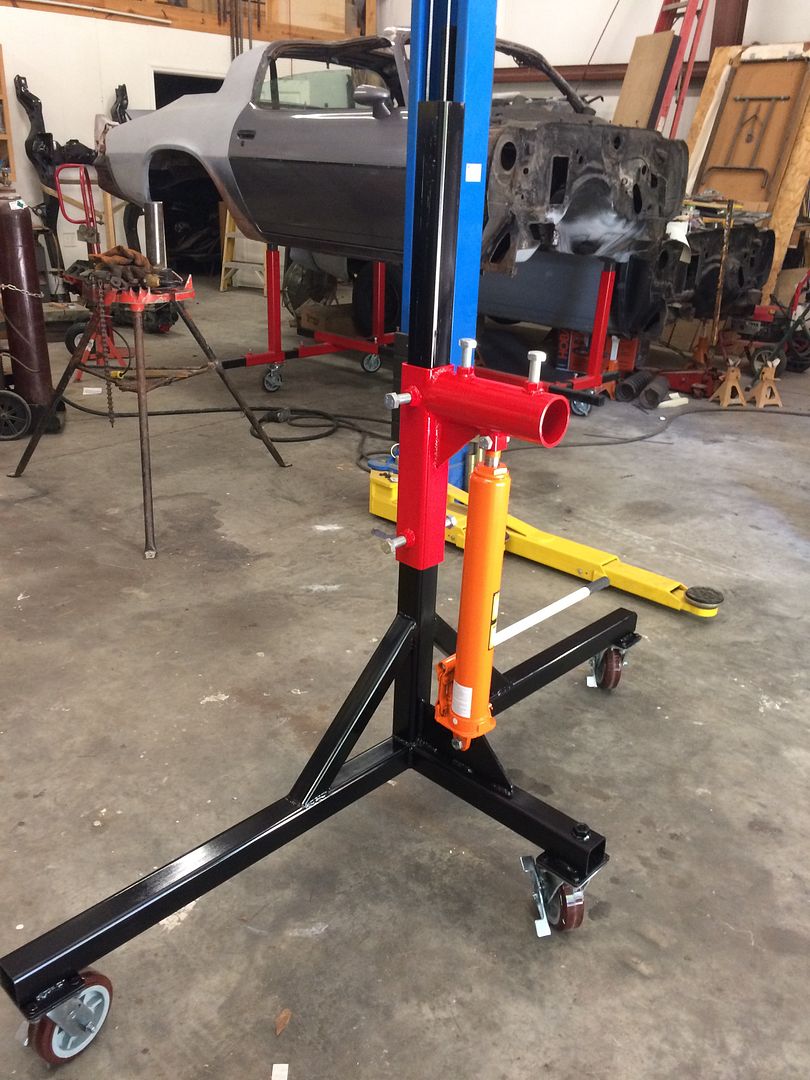

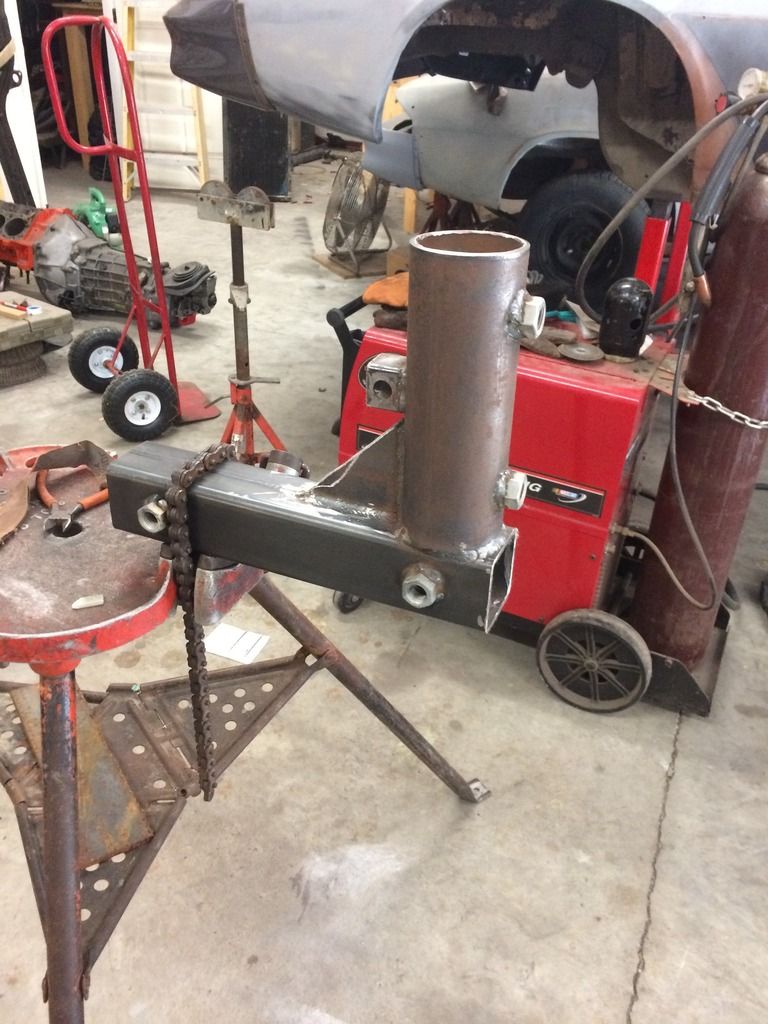

    So now it was time to assemble the pivot arms, these call for a 3 pass weld

    [​IMG]

    alittle paint and here you have it

    [​IMG]

    next came the hanger brackets

    [​IMG]

    [​IMG]

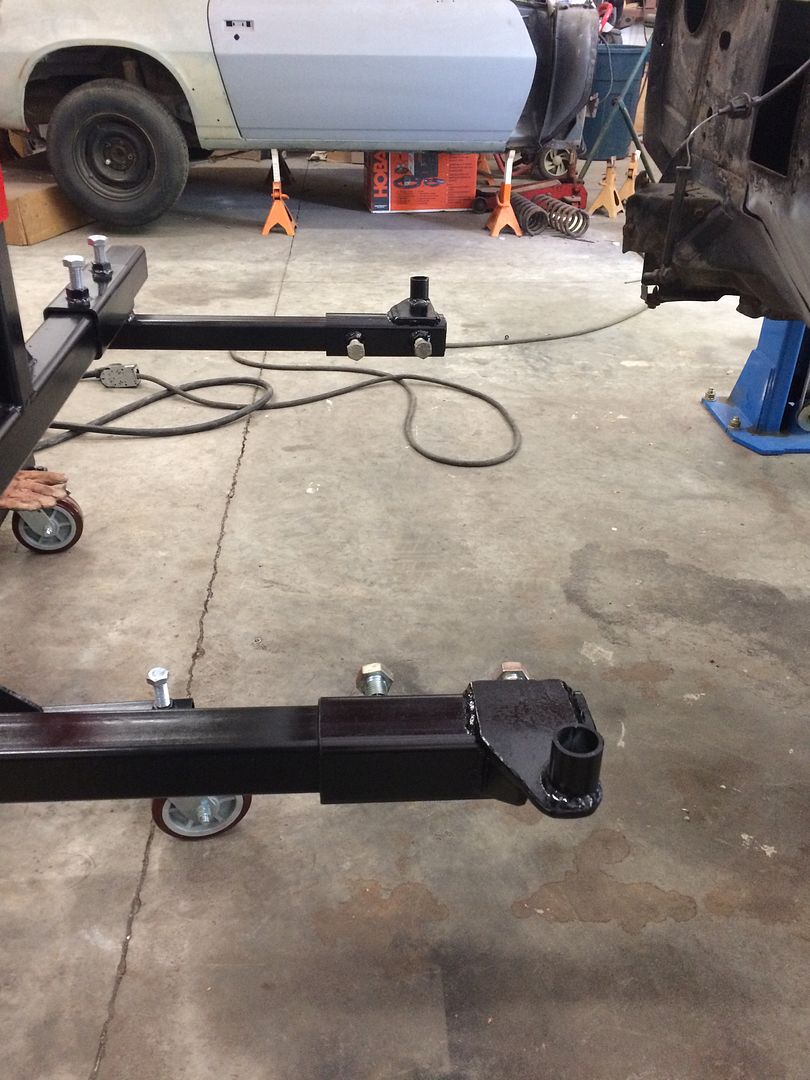

    and to finish things off the body mounting arms

    [​IMG]

    thats it for this weekend, hope to get my 79 Z28 on it next weekend

  6. rgfast

    rgfast New Member

    24
    2
    Aug 22, 2013
    Fleming GA

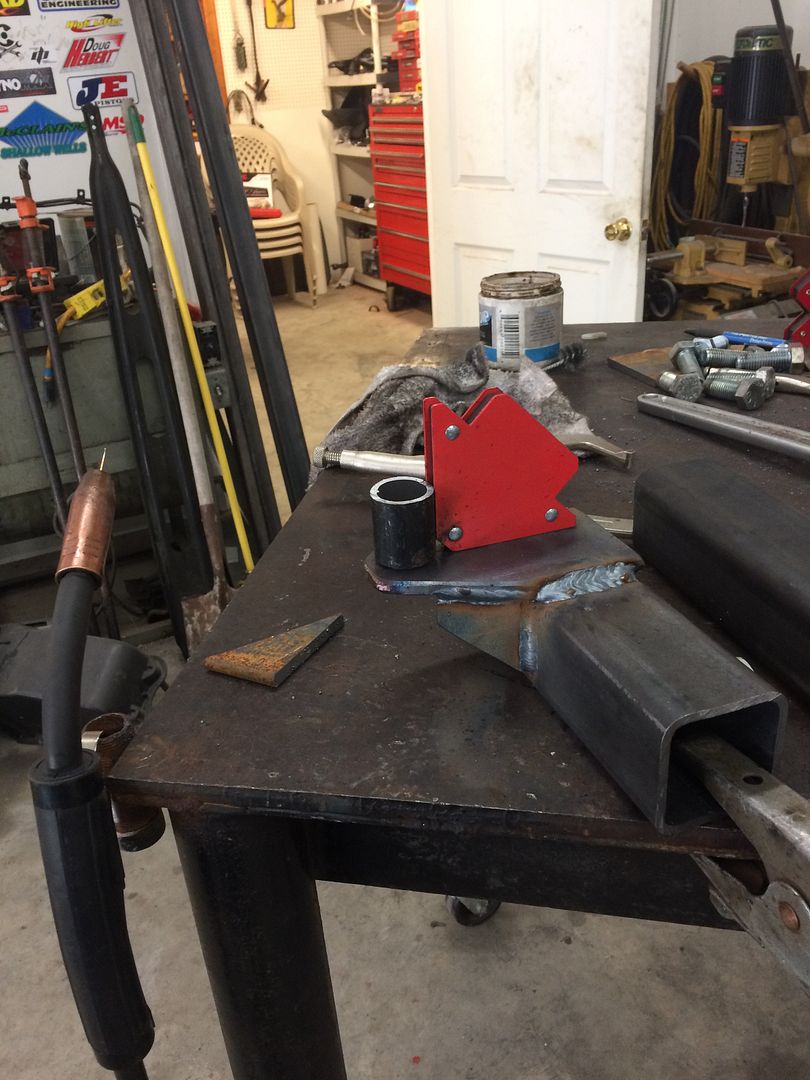

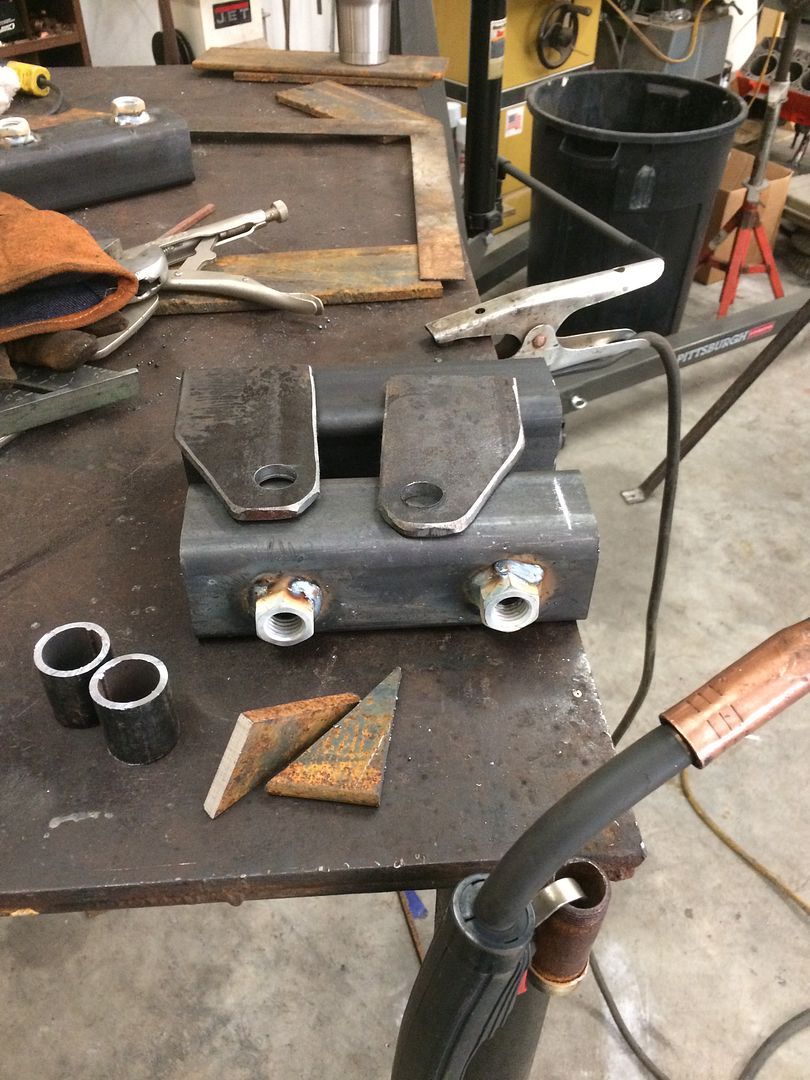

    Ok finally got to make more progress, started today by fabbing up parts for body mounting brackets. These may seem to be over kill but I like them

    [​IMG]

    [​IMG]

    [​IMG]

    the rear brackets are much more simple
    [​IMG]

    [​IMG]

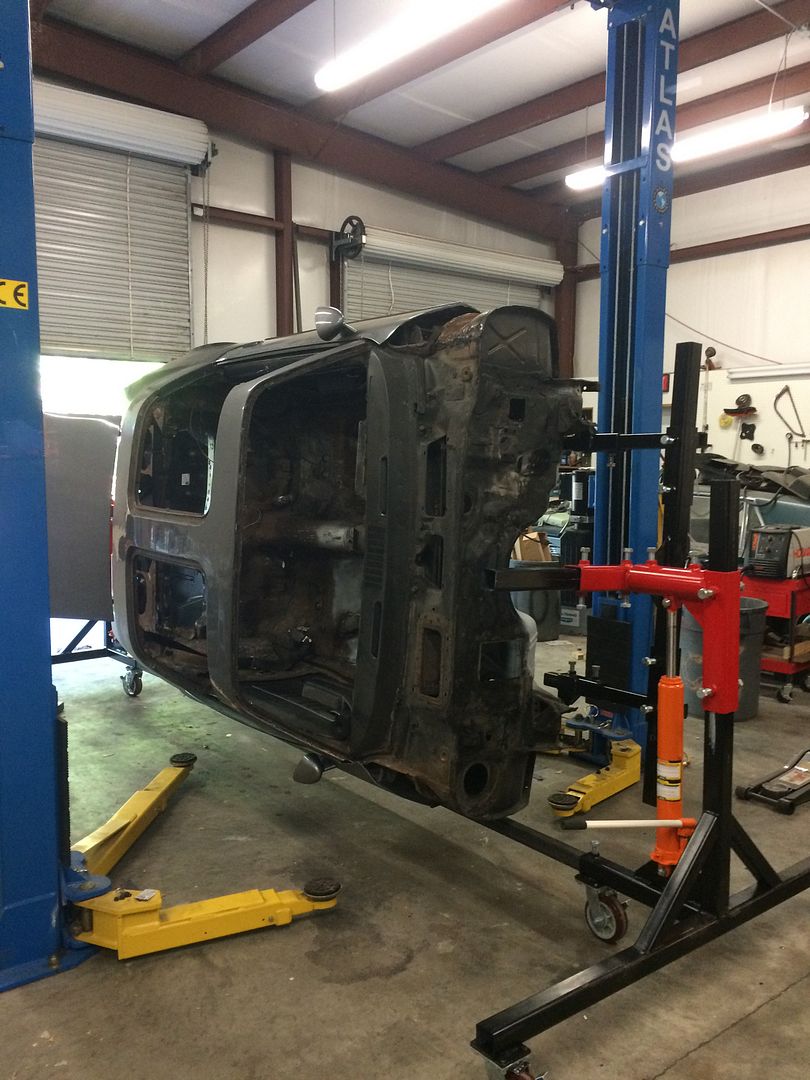

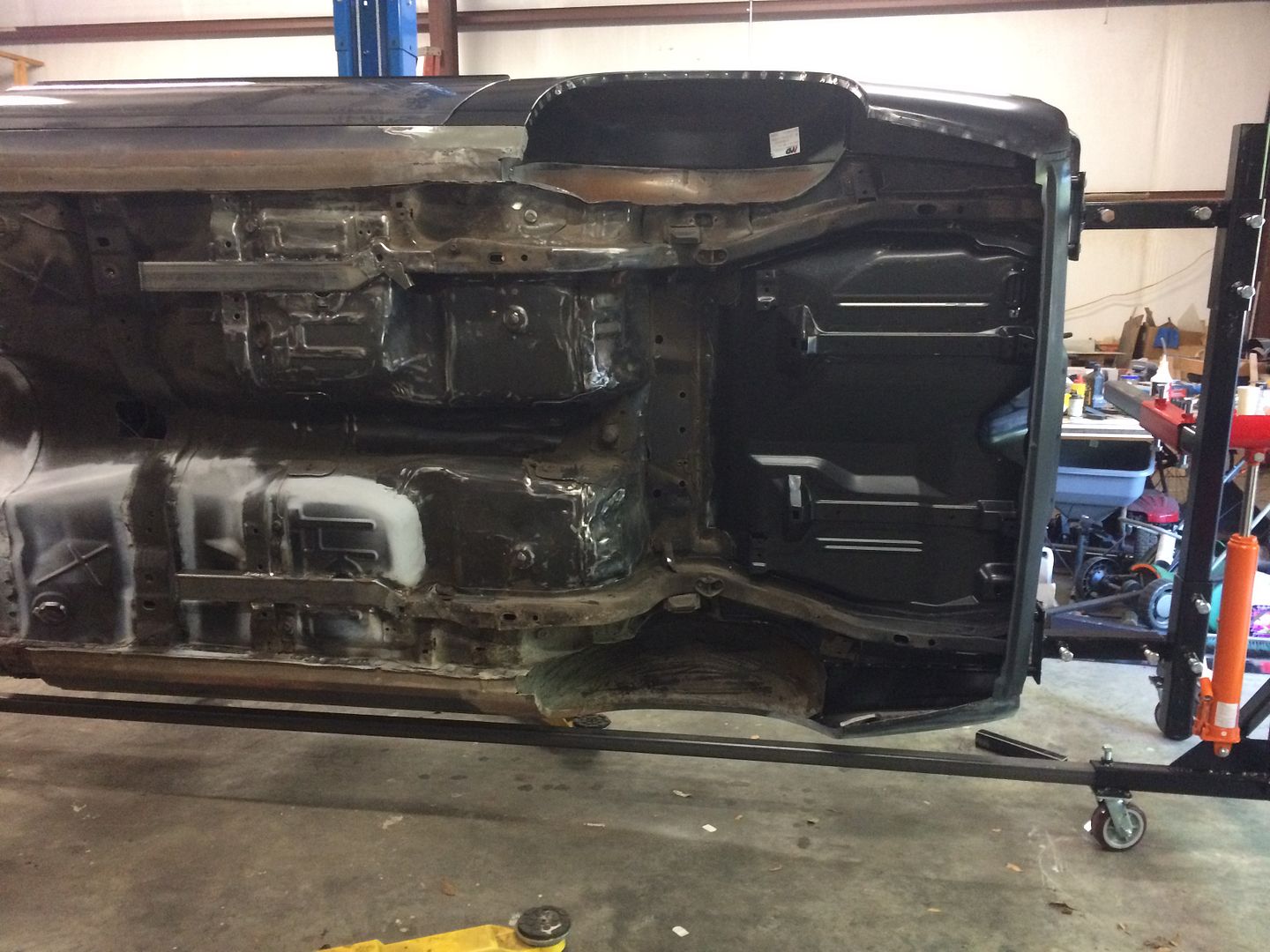

    And finally car mounted up

    [​IMG]

  7. rgfast

    rgfast New Member

    24
    2
    Aug 22, 2013
    Fleming GA
    [​IMG]

    [​IMG]

    [​IMG]

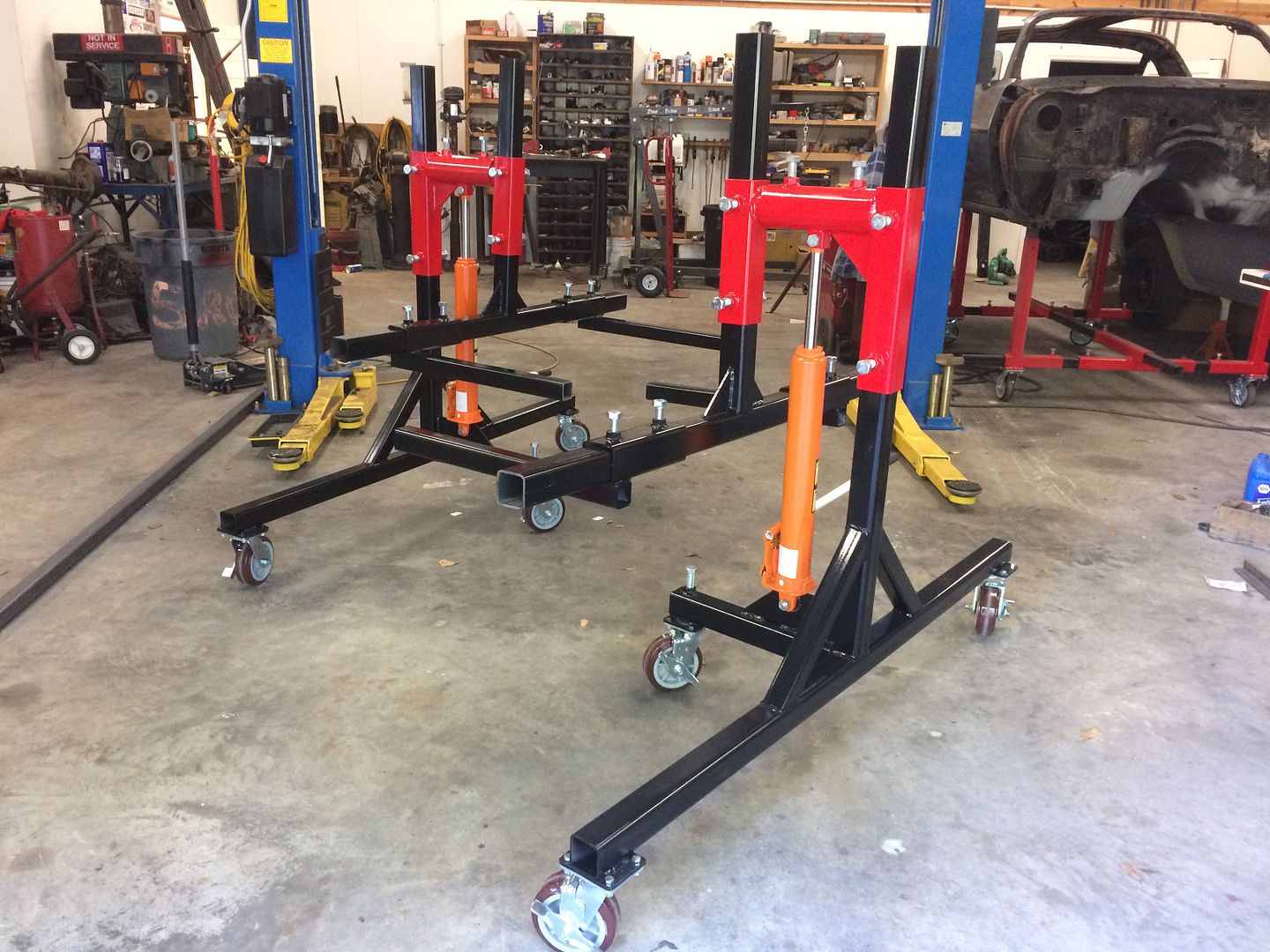

    so all in all I ended up spending about $700 to build this rotisserie and feel it will serve me well for many years to come.
    thanks for viewing

  8. 70lt1z28

    70lt1z28 Veteran Member Gold Member

    1,165
    126
    Oct 3, 1999
    Beavercreek, Ohio, USA
    Beautiful job. Mind if I copy?

    Nice thing about yours, I wouldn't be afraid to load it on a trailer and truck it across the country and not worry about it breaking halfway.

  9. FlaJunkie

    FlaJunkie Veteran Member Lifetime Gold Member

    5,678
    36
    Mar 24, 2001
    Rockledge, Florida
    GREAT job! Me, I bought one when I needed it...I just do not have the patience/skills anymore to do such a job.

  10. rgfast

    rgfast New Member

    24
    2
    Aug 22, 2013
    Fleming GA
    thanks, I put a link to the plans in my first post but here it is again http://redwingsteelworksplans.com
