Old 08-24-2011, 09:03:29 AM   #1
Airborne
Veteran Member

Airborne's Avatar

Join Date: Jan 2011
Location: FT Bragg, NC
Posts: 210
TCS Solenoid & Vacuum Lines

As the interior is being done on my car I wanted to tighten up some issues I found while inspecting it. I noticed that there is another port on my carb that is plugged with a cap. When I went through the assembly manual to match everything up I found what was missing.
The assembly manual calls it the SOL-Spark Cont. I am assuming this is a fancy way of saying TCS. Now I have found the TCS and Vacuum line set at camaro central. http://www.camarocentral.com/Product...D1029&CartID=3
What I am looking for is confirmation that this is the one I need. I am a bit concerned as it says it is bolted to the carb but the assembly manual clearly shows it bolted on the block by the passenger side valve cover. If this is not the one then where can I find it?
I found where they cut the electrical plug near the firewall and I will fix that. Is there anything else I should be thinking of? Pics of what right looks like would help. Thanks in advance!
__________________
1970 Camaro SS L34 (Norwood)
Camaro Gold, Saddle Interior

Courage is fear holding on a minute longer.
George S. Patton
Airborne is offline   Reply With Quote
Old 08-24-2011, 09:53:29 AM   #2
COPO
Lifetime Gold Member

COPO's Avatar

Join Date: Sep 1999
Location: Ontario Canada
Posts: 12,979

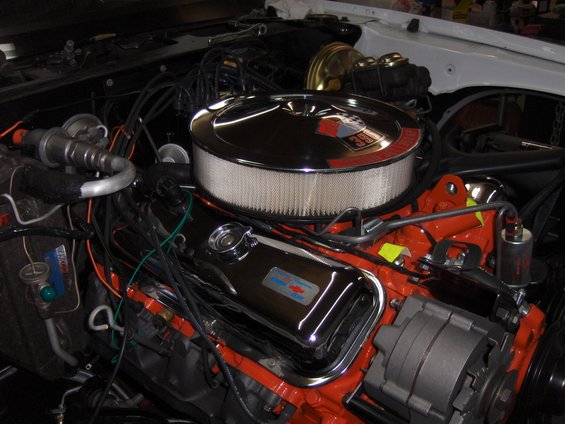

Here's the location from my 70 Z28. The number of vacuum lines may differ on the 396.
It bolts to the intake with a bolt that has threads at both ends. The upper threaded portion is for the nut to hold down the switch.



__________________
Mark
My 70 Z28 Web Site http://www.nastyz28.com/~copo/index.htm
Twitter
Qjet rebuilt etc http://www.nastyz28.com/~copo/qjet.zip
The angle of the tangle X's the heat of the meat = the mass of the ASS.

Last edited by COPO : 08-24-2011 at 09:55:45 AM.
COPO is offline   Reply With Quote
Old 08-24-2011, 10:32:27 AM   #3
Airborne
Veteran Member

Airborne's Avatar

Join Date: Jan 2011
Location: FT Bragg, NC
Posts: 210
Thanks Mark! I'm going to order the TCS, bolt and Vacuum lines. The TCS from camaro central looks identical.
Now I ran across the TCS relay while wire tracing and I will order it to. I assume it is bolted to the firewall somewhere? Now I have to run wires for it. The purple goes to the neutral safety switch, dark blue goes to the TCS along with the blue from the trans switch. Okay, where does the dark green wire go? Is that some kind of ground on sheet D2 of the assembly manual? It just ends in the middle of nowhere.
__________________
1970 Camaro SS L34 (Norwood)
Camaro Gold, Saddle Interior

Courage is fear holding on a minute longer.
George S. Patton
Airborne is offline   Reply With Quote
Old 08-24-2011, 10:35:22 AM   #4
Airborne
Veteran Member

Airborne's Avatar

Join Date: Jan 2011
Location: FT Bragg, NC
Posts: 210
Crud! I forgot to ask about the vacuum lines. Are yours all rubber or do you have hard lines for the TCS as well? This is why.... http://www.camarocentral.com/Product...2D393&CartID=2
__________________
1970 Camaro SS L34 (Norwood)
Camaro Gold, Saddle Interior

Courage is fear holding on a minute longer.
George S. Patton
Airborne is offline   Reply With Quote
Old 08-24-2011, 10:42:41 AM   #5
70 SS/L78
Veteran Member

Join Date: May 2005
Location: Ramsey, MN
Posts: 1,587
The TCS solenoids between the small block cars and big block cars are different, they have different p/n. I've never compared them side by side but I believe the mounting bracket is a little different. It does mount on one of the Intake manifold bolts/stud like Mark mentioned. The TCS setup uses both hard lines and rubber hoses at the ends. I have the factory original setup on my L34 car and can get you a picture but I may not be able to get to it till Saturday.
__________________
Scott Kiehne

1970 SS/L78 *Concours frame-off restoration in 2012* Classic Copper & Saddle Interior, matching #'s, 4:10 gears. Owned since 1991
See photos of my L78 Restoration process....
http://www.facebook.com/media/set/?s...3&l=49999673f6

Last edited by 70 SS/L78 : 08-24-2011 at 10:45:21 AM.
70 SS/L78 is offline   Reply With Quote
Old 08-24-2011, 11:10:04 AM   #6
Airborne
Veteran Member

Airborne's Avatar

Join Date: Jan 2011
Location: FT Bragg, NC
Posts: 210
Scott that would be freakin' awesome. I will wait until I see the pics to order then. Thanks a ton!
__________________
1970 Camaro SS L34 (Norwood)
Camaro Gold, Saddle Interior

Courage is fear holding on a minute longer.
George S. Patton
Airborne is offline   Reply With Quote
Old 08-24-2011, 11:24:57 AM   #7
flowjoe
Lifetime Gold Member

Join Date: Feb 2006
Location: SoCal
Posts: 7,242
Quote:
Originally Posted by Airborne
Scott that would be freakin' awesome. I will wait until I see the pics to order then. Thanks a ton!
I have both TCS solenoids here - you have a PM
__________________
Camaros
'67 LA V8 Convertible, Butternut Yellow
'69 NOR Z/28, Yellow w/black stripes - X-77
'69 LA SS 350, Fathom Green
'69 LA Z/28, Daytona Yellow
'70 LA Z/28, Daytona Yellow
'71 LA RS/SS, Nevada Silver
'71 LA SC, Green
Pontiacs
'67 Firebird convertible
'69 GTO - Triple black, 50,000 miles
Corvettes
'70 LT-1, T-top, 4spd, Bridgehampton Blue
'82 T-top, white
flowjoe is offline   Reply With Quote
Old 08-24-2011, 12:11:02 PM   #8
Airborne
Veteran Member

Airborne's Avatar

Join Date: Jan 2011
Location: FT Bragg, NC
Posts: 210
Sounds good. Reply sent for the BB one...
__________________
1970 Camaro SS L34 (Norwood)
Camaro Gold, Saddle Interior

Courage is fear holding on a minute longer.
George S. Patton
Airborne is offline   Reply With Quote
Old 08-24-2011, 12:47:27 PM   #9
boardog
Veteran Member

Join Date: Dec 2006
Location: north ga
Posts: 729
the parts place has the solenoid and i sent inline a set of original metal lines last year and they should now have them in the cat.

original pic


repo parts
__________________
Ken's
Automobile
Restoration
Service
boardog is offline   Reply With Quote
Old 08-24-2011, 02:28:49 PM   #10
Smokey34
Veteran Member

Join Date: Aug 2008
Location: Texas
Posts: 320
Hey Airborne, Didn't see anyone mention it yet, but the green wires go to this switch that installs in the passenger side head. - Not sure if any of the parts places sell a reproduction, or maybe ever Autozone..., but I would definitely stay away from the JoParts seller who has these on ebay. -



Good Luck !
__________________
1970 SS/396
1991 Z28/5.7
1999 Z28
Smokey34 is offline   Reply With Quote
Old 08-24-2011, 04:17:10 PM   #11
Airborne
Veteran Member

Airborne's Avatar

Join Date: Jan 2011
Location: FT Bragg, NC
Posts: 210
Smokey, what the heck is that? I'm going to have to go look at my car again. I'm hoping they didn't take that out or there is a hole somewhere. Where is this thing at?
Once again a thing I thought would be quick and simple is turning into some serious fun time.
__________________
1970 Camaro SS L34 (Norwood)
Camaro Gold, Saddle Interior

Courage is fear holding on a minute longer.
George S. Patton
Airborne is offline   Reply With Quote
Old 08-24-2011, 04:40:13 PM   #12
boardog
Veteran Member

Join Date: Dec 2006
Location: north ga
Posts: 729
pass side cyl. head
__________________
Ken's
Automobile
Restoration
Service
boardog is offline   Reply With Quote
Old 08-24-2011, 04:47:40 PM   #13
70 SS/L78
Veteran Member

Join Date: May 2005
Location: Ramsey, MN
Posts: 1,587
The above picture in post 10 is the TCS temp sensor that screws into the cylinder head on the passenger side (same way as the engine temp sensor on the drivers side). It's all part of the worthless TCS system that chevrolet used. Somewhere on the net I found a really good article that explains in detail how the whole system operates..... I'll see if I can find it again.
__________________
Scott Kiehne

1970 SS/L78 *Concours frame-off restoration in 2012* Classic Copper & Saddle Interior, matching #'s, 4:10 gears. Owned since 1991
See photos of my L78 Restoration process....
http://www.facebook.com/media/set/?s...3&l=49999673f6
70 SS/L78 is offline   Reply With Quote
Old 08-24-2011, 04:48:20 PM   #14
Smokey34
Veteran Member

Join Date: Aug 2008
Location: Texas
Posts: 320
Hey Airborne, Take a look at the bottom pic in Boardog's ( boardog and Scott beat me to it ) "1st" post, If you look directly to the right of the dipstick, that's it. In Boardog's pic, you can even see the green wires running to it. I know I've seen some of these cars with large plugs screwed into the hole. - I think it's just a temperature switch, but I'm really not sure what exactly this thing does. -

Take Care !
-
__________________
1970 SS/396
1991 Z28/5.7
1999 Z28

Last edited by Smokey34 : 08-24-2011 at 06:26:31 PM.
Smokey34 is offline   Reply With Quote
Messages from Our Sponsors !
Awesome NastyZ28.com Merchandise !!

T-shirts, wearing apparel

Drinkware, Mouse Pads, Decals

Old 08-24-2011, 05:18:08 PM   #15
70 RS/Z28
Lifetime Gold Member

70 RS/Z28's Avatar

Join Date: Jan 2008
Location: Just south of the cheddar curtain
Posts: 655


__________________
Carl

70 RS/Z28 is offline   Reply With Quote
