question on 81 guage layout

Hey guys,

I have an 81 that has the large speedo on the left and large fuel guage on the right. Between them, and higher is a hole about the size of a quarter. I believe it's original, but I have no idea what would have been there. Whatever it was will likely go away, but I was hoping someone could tell me what would have been there. Thanks in advance!
FunBobby is offline   Reply With Quote
Messages from Our Sponsors !
Awesome NastyZ28.com Merchandise !!

T-shirts, wearing apparel

Drinkware, Mouse Pads, Decals

Old 03-16-2012, 03:04:40 PM   #2
moosey3000
New Member

Join Date: Dec 2001
Location: Franklin, NH U.S.A.
Posts: 25
That is where the "Check Engine" light would be.
Attached Thumbnails
Click image for larger version

Name:	24788030014_large.jpg
Views:	27
Size:	48.5 KB
ID:	13682
moosey3000 is offline   Reply With Quote
Old 03-16-2012, 03:12:08 PM   #3
FunBobby
Lifetime Gold Member

FunBobby's Avatar

Join Date: Feb 2012
Location: Simpsonville, SC
Posts: 600
Ok, thanks! I had an 80 Z28 when I was 17 (a long time ago) and it obviously had a different layout. My goal is to "recreate" that car I had....so that check engine light may not survive the transformation!
FunBobby is offline   Reply With Quote
Old 03-16-2012, 03:45:00 PM   #4
B.M.
Veteran Member

Join Date: Jan 2010
Location: Columbus,Ohio
Posts: 900
I have a gauge bezel from my 80 Z,the brown/bronze color is worn off in a few spots,but if your looking for one send me a pm and i'll get you some pics of it.
__________________
80 Z28,350 with a 4 speed
B.M. is offline   Reply With Quote
Old 03-16-2012, 05:37:44 PM   #5
Skip Fix
Veteran Member

Join Date: Mar 2007
Location: Katy,Texas
Posts: 1,631
Any input on plug and what colors are what for an 81 cluster?

http://www.nastyz28.com/forum/showthread.php?t=236738
__________________
Skip Fix
1978 Trans Am 10.99@ 124 pump gas 455
1979 Camaro 383 SBC 4 speed,soon to get a 500" Pontiac motor 695 HP, TH400
1981 Trans Am 400,new 455 in the wings,Turbo 301 on a stand
2004 GTO stock computer tune 13.44
1965 GTO BIG project
1964 Impala SS 409/470ci stroker project 604 HP
Skip Fix is offline   Reply With Quote
Old 03-16-2012, 06:50:17 PM   #6
B.M.
Veteran Member

Join Date: Jan 2010
Location: Columbus,Ohio
Posts: 900
Quote:
Originally Posted by Skip Fix
Any input on plug and what colors are what for an 81 cluster?

http://www.nastyz28.com/forum/showthread.php?t=236738
From what i can tell on my 80,which should be the same as the 81,i traced out the wires as far as i could follow them,and it seems that the pin numbers listed in the electrical stickie section,all match up just the later cars have a few different colors of wire in the harness,but pins match up.I will know for sure sometime this weekend as i will be putting my new autometers in the car finally haha,anyway as long as everything works,i can then confirm whether they are the same or not.As for the big 12gauge brown wire,it should be for the oil pressure light,as long as you are referring to the wire in slot # 12 on the plug.
__________________
80 Z28,350 with a 4 speed
B.M. is offline   Reply With Quote
Old 03-17-2012, 02:19:25 PM   #7
Skip Fix
Veteran Member

Join Date: Mar 2007
Location: Katy,Texas
Posts: 1,631
You would just think you wouldn't need a 12ga oil gauge wire!
__________________
Skip Fix
1978 Trans Am 10.99@ 124 pump gas 455
1979 Camaro 383 SBC 4 speed,soon to get a 500" Pontiac motor 695 HP, TH400
1981 Trans Am 400,new 455 in the wings,Turbo 301 on a stand
2004 GTO stock computer tune 13.44
1965 GTO BIG project
1964 Impala SS 409/470ci stroker project 604 HP
Skip Fix is offline   Reply With Quote
Old 03-17-2012, 02:28:39 PM   #8
B.M.
Veteran Member

Join Date: Jan 2010
Location: Columbus,Ohio
Posts: 900
Yeah,i really dont understand why they did it like that,the wire on the sending unit on the engine is not a 12 gauge,it's more like 16 gauge,so i'm not sure why it's bigger under the dash.
__________________
80 Z28,350 with a 4 speed
B.M. is offline   Reply With Quote
Old 03-17-2012, 02:35:34 PM   #9
Skip Fix
Veteran Member

Join Date: Mar 2007
Location: Katy,Texas
Posts: 1,631
I;ve got Autometers in a Covan I'm using. Be nice if the Painless harness had a plug you could just use the factory pins in!
__________________
Skip Fix
1978 Trans Am 10.99@ 124 pump gas 455
1979 Camaro 383 SBC 4 speed,soon to get a 500" Pontiac motor 695 HP, TH400
1981 Trans Am 400,new 455 in the wings,Turbo 301 on a stand
2004 GTO stock computer tune 13.44
1965 GTO BIG project
1964 Impala SS 409/470ci stroker project 604 HP
Skip Fix is offline   Reply With Quote
Old 03-17-2012, 08:45:11 PM   #10
B.M.
Veteran Member

Join Date: Jan 2010
Location: Columbus,Ohio
Posts: 900
Yeah.i dont understand why nobody has ever came out with a gauge harness for aftermarket gauges that would plug right into the factory harness.I'm not sure what the painless harness comes with as far as a connector as i made my own harness,but they sell the 12 pin plugs on ebay and the male and female pins pretty cheap.I bought a 12 pin plug kit from jegs that was made by msd,only because jegs is local,it was expensive though,close to $26 or so,but it worked out great.I just clipped the wires on the factory plug,as i cut each 1 i put the new pin on and connected it in the same # on the new plug as what it was on the old one.
__________________
80 Z28,350 with a 4 speed
B.M. is offline   Reply With Quote
Old 03-17-2012, 10:02:41 PM   #11
77RS
Site Sponsor

77RS's Avatar

Join Date: Oct 2006
Location: Asheboro, NC
Posts: 2,950

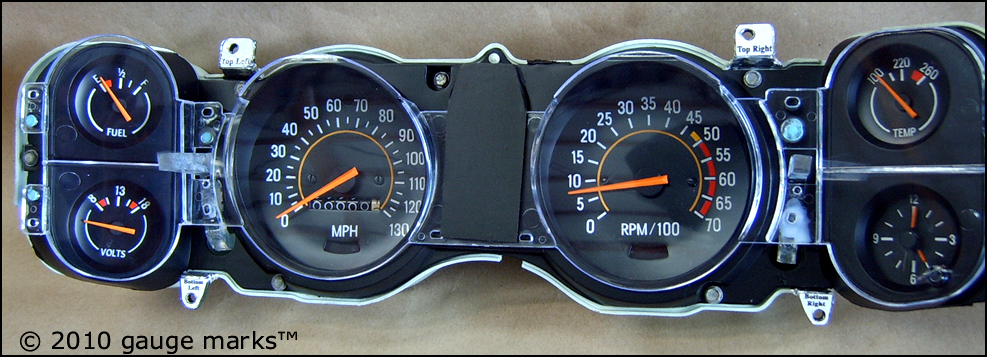

Welcome aboard Bobby! I see that you're from Greenville. I am originally from Liberty (Pickens County). I moved to Asheboro NC in '90. Just wanted to say hi and welcome to NastyZ28. I do complete gauge restoration, calibration, and repair for all 2nd Gen Camaro's. If you need any help just let me know.
Thanks! Daniel

__________________
My 77 Rally Sport Project
gaugemarks.com

Complete gauge Restoration, Calibration and Repair for:
  • 70-79 Camaro (all models)
  • 70-79 Trans Am
  • 66-67 Chevelle and El Camino
  • 71-77 Chevelle, Monte Carlo, and El Camino
home of the 2nd Generation Camaro Oil Pressure Gauge!

Gauge Marks in HPP magazine

Visit the web site, PM, or email info@gaugemarks.com for more info.
77RS is offline   Reply With Quote
